OVERVIEW

Red Cat is proud to introduce its line of Unmanned Surface Vessels (USVs) with integrated sensors and kinetic-strike capabilities that redefine maritime autonomy and lethality.  Our mission is to support national defense with innovative, mission-ready platforms – while playing a vital role in revitalizing the American maritime industry through advanced manufacturing, strategic partnerships, and unwavering commitment to U.S.-based innovation.

“Our unmanned surface vessels are purpose-built to support U.S. military operations by delivering resilient, interoperable maritime capabilities that adapt to evolving mission requirements.”

Jeff Thompson, CEO, Red Cat

5-Meter Variant

5

Introducing our 5-meter variant battle-proven Unmanned Surface Vessel (USV), to the U.S. and allied defense markets. Designed for speed, stealth, and precision, this variant delivers lethal strike capabilities in a compact, highly maneuverable platform built for today’s contested maritime environments.

  • BENEFITS
  • Designed for speed, stealth, and precision, the 5-meter variant delivers lethal strike capabilities in a compact, highly maneuverable platform built for today's contested maritime environments.
  • Its modular design supports a range of payloads—from kinetic strike packages to ISR and EW systems—enabling mission flexibility across surveillance, interdiction, and high-value target engagements.
  • As part of Red Cat’s integrated family of unmanned solutions, the 5-meter variant is engineered for multi-domain operations, working in tandem with our drone and autonomous technologies to deliver coordinated maritime and aerial dominance.
  • Manufactured in the United States, our line of unmanned service vessels support both national defense priorities and local economic growth, aligning with the U.S. Maritime Action Plan to revitalize American shipbuilding and unmanned systems innovation.
  • Not just a vessel—it’s a disruptive force multiplier for modern naval warfare.
  • SPECIFICATIONS
  • Maximum Operational Range: up to 450 nm at cruise speed
  • Endurance (Unmanned): 48+ hr continuous operation
  • Max Velocity (Combat Config): at least 50 kn
  • Sustained Operational Velocity: 23 kn
  • Sea State Operational Rating: SS3 (marginal), SS2 (optimal)
  • Mission Payload Capacity: up to 320 kg (705 lbs)
  • Sensor Package: Primary: EO/IR sensor suite with multi-axis stabilization | Secondary: Redundant EO/IR imaging systems
  • Command & Control: Multi-channel encrypted C2 datalinks with SatCom integration, COMSEC-compliant
  • Length Overall (LOA): 5.75m
  • Beam: 1.5m
  • Height (Keel to Highest Point): 1.0m
  • Displacement (Light/Full): 625/1450Kg
  • Propulsion Rating: 325Hp
  • Fuel Type: Petrol
  • Fuel Capacity: 550L
  • Propulsion System: Jet
  • Hull Construction: Maritime-grade composite fiberglass
Advanced Integrated Technology: Combines secure command and control, precision navigation, and best-of-breed sensors within a flexible, modular open architecture.

U.S.-Based Manufacturing: All USV production is based in the United States, directly supporting American manufacturing revitalization and job creation in alignment with national economic priorities.

Maritime Action Plan: Our go-to-market and manufacturing strategies are built to align with the current administration’s Maritime Action Plan Executive Order, addressing fleet modernization, national security, and maritime workforce development.
Multi-Domain Integration: Red Cat’s USVs are designed for seamless integration with our drone and ISR platforms, enabling true multi-domain operations across sea, air, and land for unified command and control.

Tactical Edge in Peer Conflicts: Our platforms offer high-speed, low-profile strike capabilities, giving operators a decisive edge in contested maritime environments—especially in the Asia Pacific.

Strike-Ready Modularity: Our USVs feature modular payload bays to accommodate a wide range of munitions, ISR packages, and EW tools—ready for mission-specific customization.

7-Meter Variant

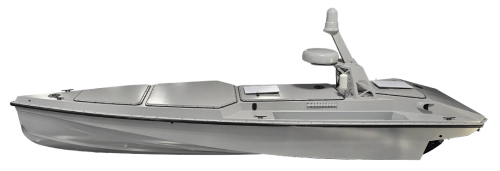

variant7-side-profile

Introducing the Variant 7, an advanced unmanned surface vessel designed for extended range, endurance, and increased payload capacity. Built on operational insights and powered by Blue Ops’ open MOSA architecture with proprietary semi-autonomous command and control, the Variant 7 supports mission-adaptable operations, including integrated UAV launch and recovery. The Variant 7 enhances flexibility for U.S. and allied forces across complex maritime environments.

  • BENEFITS
  • Designed for extended range, increased payload capacity, and integrated UAV launch, the Variant 7 delivers enhanced mission flexibility to support maritime operations including strike, force protection, and coastal security in complex environments.
  • It integrates seamlessly with Red Cat’s suite of ISR and unmanned aerial systems, supporting multi-domain coordination and networked autonomous operations.
  • For naval commanders seeking powerful, proven, and scalable unmanned strike capabilities, the 7-meter variant offers an unmatched solution—designed for the fight, and ready to win it.

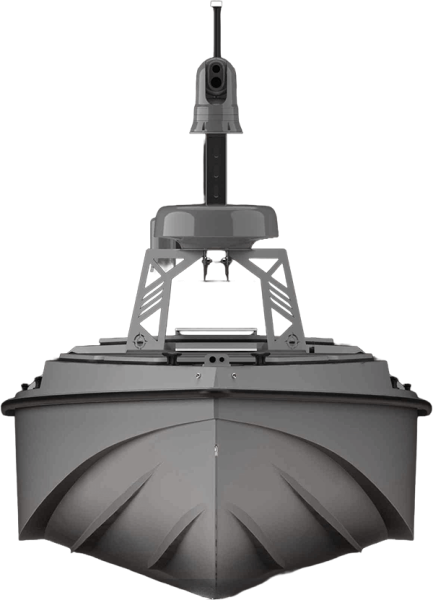

USV-Variant7

_VARIANT 7

BLACK WIDOW ™

THE FUTURE OF ALL DOMAIN OPERATIONS_
